R901484935 — Pump Control System SYDFED-3X/140R-VSB22U99-0487-D2AVVXX-K
PUMP CONTROL SYSTEM
SYDFED-3X/140R-VSB22U99-0487-D2AVVXX-K
Mărime 140 cm³ · Presiune max. de lucru 280 bar · Debit max. 252 l/min
Specificații tehnice
| Connectivity | Bus connection / analog |
| Sens de rotație | Clockwise rotation |
| Displacement type | variable |
| Electric connection description | Connector, 12-pole (11 + PE) according to EN 175201-804 |
| Electrical connector | Connector, 12-pole (11 + PE) |
| Greutate brută | 77 kg |
| Hydraulic fluid | HLP |
| Debit max. | 252 l/min |
| Mounting flange | ISO 4-hole |
| Greutate netă | 77 kg |
| Presiune max. de lucru | 280 bar |
| Product family | SYDFED |
| Seals | FKM |
| Shaft end | Geared shaft (S) |
| Mărime | 140 cm³ |
| Supply voltage | 24 VDC |
| Through drive | with |
| Greutate | 77 kg |
Documentație tehnică

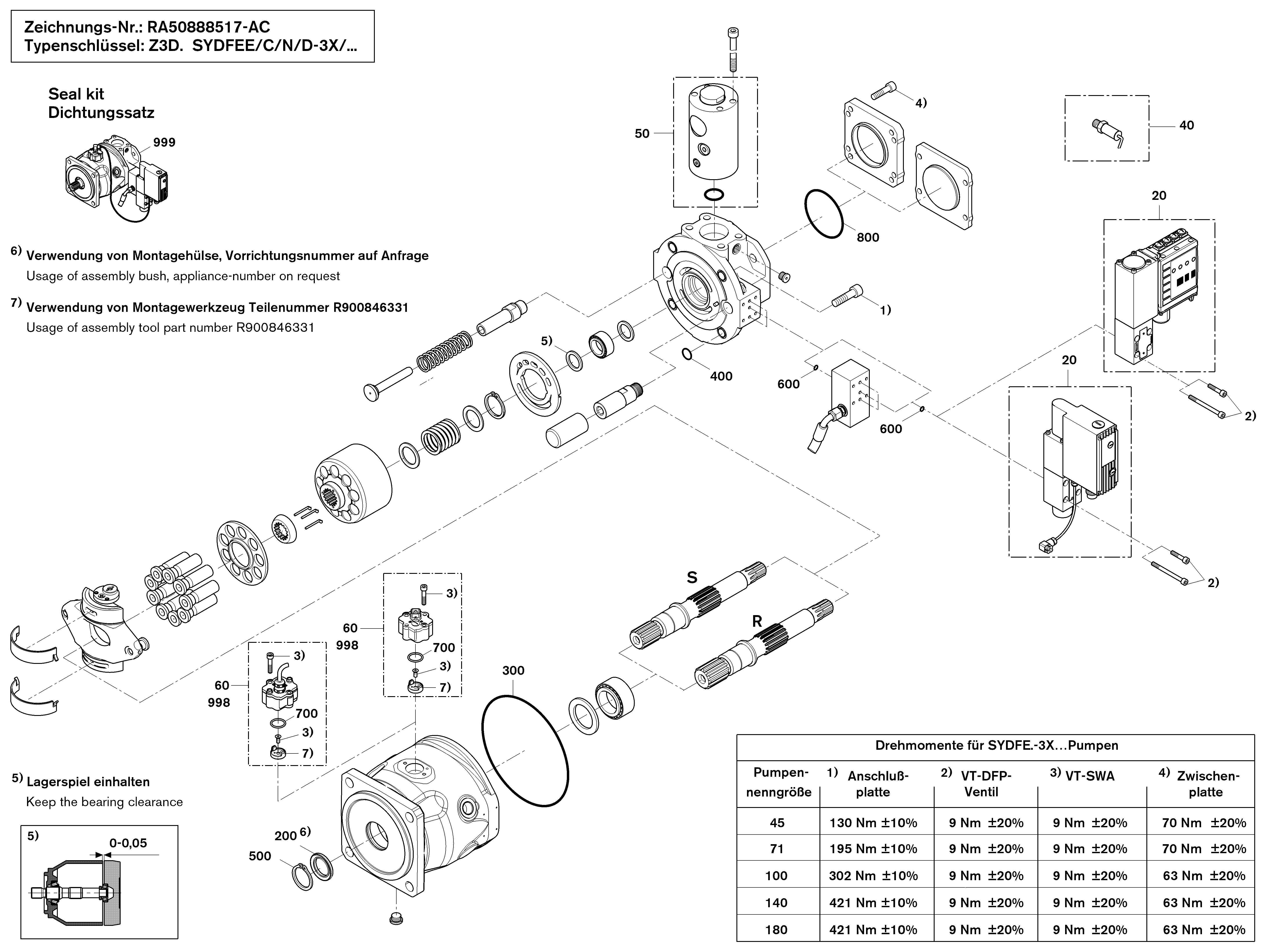

Piese de schimb — vedere explodată
| Poz. | Cod material | Denumire | Cant. |
|---|---|---|---|
| 20 | R901205920 | DISTRIBUITOR PROPORŢIONAL | 1 |
| 998 | R901396459 | SENS DE DEZLOCUIRE | 1 |
| 999 | R961008833 | SET DE GARNITURI | 1 |
