R901241450 — DBDS 30 K1X/25 SO157
PRESSURE RELIEF VALVE
DBDS 30 K1X/25 SO157
Presiune max. de lucru 315 bar · Debit max. 330 l/min
Specificații tehnice
| Adjustment options | Bushing with hexagon and protective cap |
| Cavity | M60x2 |
| Connection diagram | Mounting cavity DBD NG30 |
| Direct - Pilot | Direct acting |
| Greutate brută | 1.96 kg |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
| Debit max. | 330 l/min |
| Greutate netă | 1.96 kg |
| Nominal flow | 330 l/min |
| Presiune max. de lucru | 315 bar |
| Ports | G 1 1/2 |
| Ports number | 2 |
| Product family | Relief |
| Product family classification | Pressure relief valve, direct operated |
| Product family type | DBD.K |
| Product type | DBD.K |
| Sealing material | NBR |
| Seals | NBR |
| Spool Poppet | Poppet type |
| Type of actuation | with manual actuation |
| Type of connection | Screw-in cartridge valve |
| Greutate | 1.96 kg |

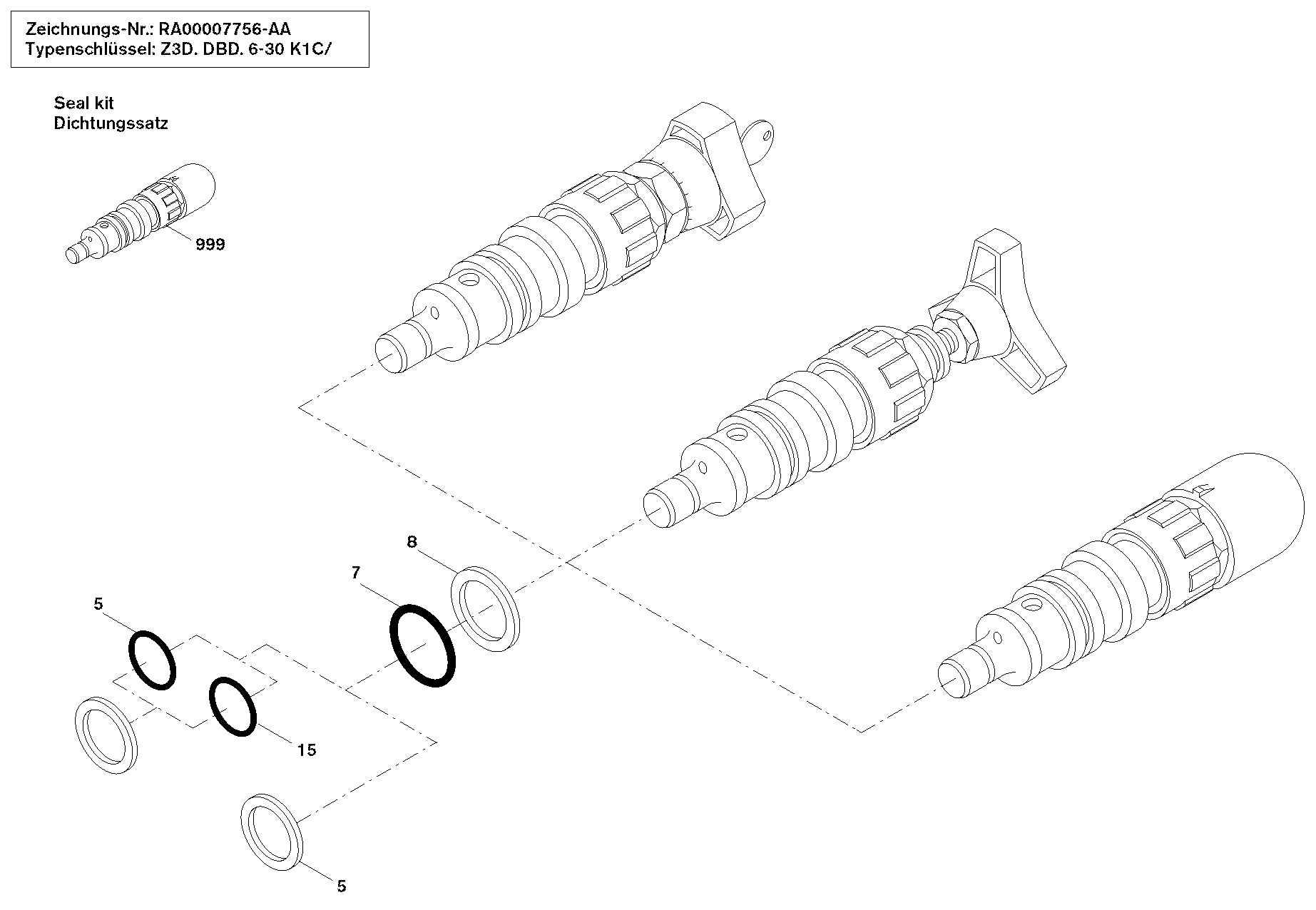

Piese de schimb — vedere explodată
| Poz. | Cod material | Denumire | Cant. |
|---|---|---|---|
| 999 | R961007447 | SET DE GARNITURI | 1 |
