R901181740 — Distribuitor Cu Sertar H-4WEH16E7X/6EG24SK4QM0G24
DIRECTIONAL SPOOL VALVE
H-4WEH16E7X/6EG24SK4QM0G24
Mărime 16 · Simbol sertar Symbol E · Presiune max. de lucru 350 bar
Specificații tehnice
| Connection diagram | ISO 4401-07-07-0-05 |
| ECLASS_13_Classification | 51-44-01-02 |
| Electric connection description | Connector, 3-pole (2 + PE) according to EN 175301-803 |
| Electrical connector | Connector, 3-pole (2 + PE) |
| Greutate brută | 11.44 kg |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
| Debit max. | 300 l/min |
| Greutate netă | 11.44 kg |
| Presiune max. de lucru | 350 bar |
| Product family | H-4W.H.. |
| Seals | NBR |
| Mărime | 16 |
| Simbol sertar | Symbol E |
| Supply voltage | 24 VDC |
| Type of actuation | with solenoid actuation |
| Type of connection | Subplate mounting |
| Valve ports number | 4 |
| Valve position number | 3 |
| Greutate | 11.44 kg |
Documentație tehnică

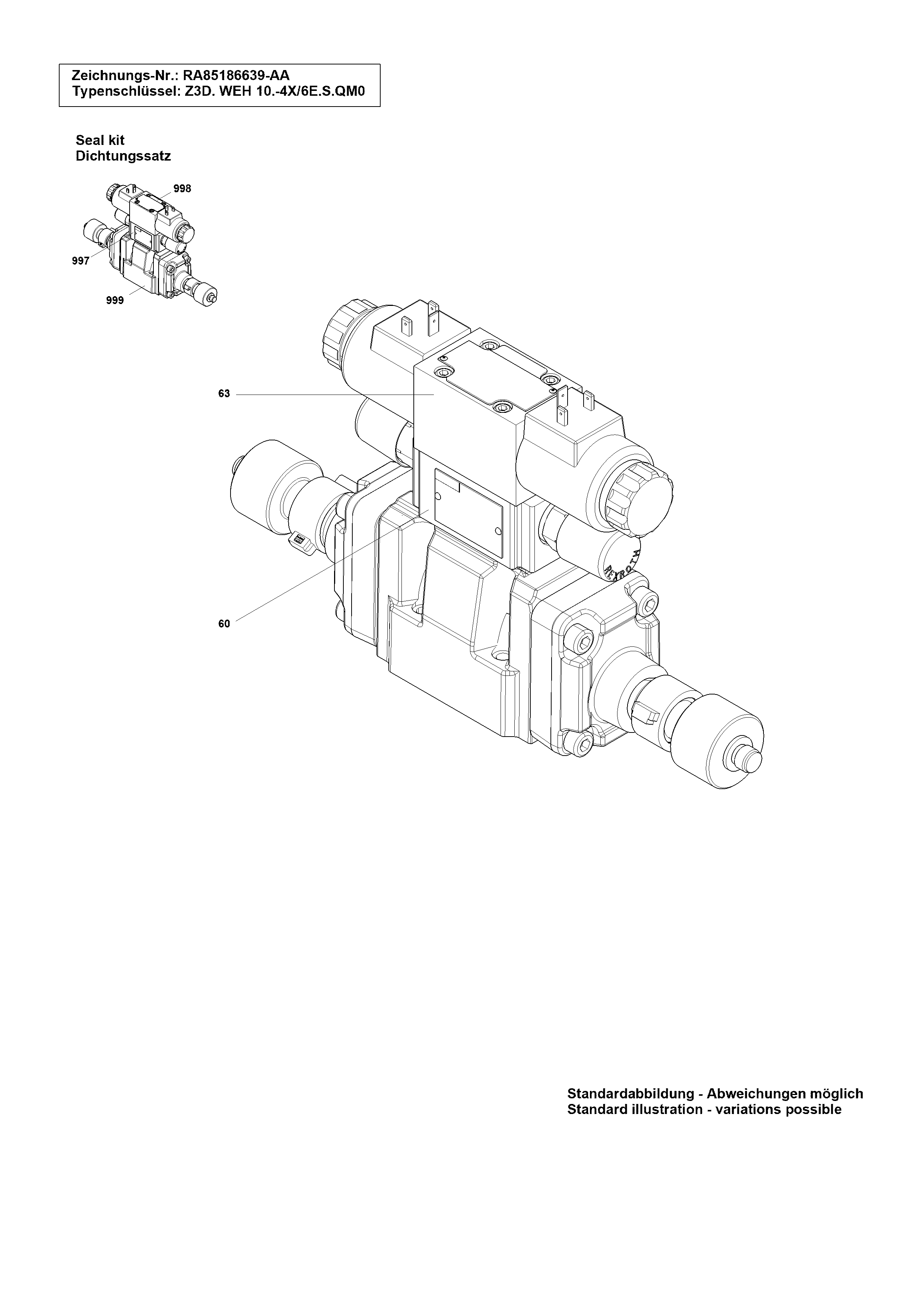

Piese de schimb — vedere explodată
| Poz. | Cod material | Denumire | Cant. |
|---|---|---|---|
| 60 | R900481621 | SUPAPĂ DE STRANGULARE | 1 |
| 63 | R900904828 | DISTRIBUITOR CU SERTAR | 1 |
| 997 | R900899023 | SET DE GARNITURI | 1 |
| 998 | R900357573 | SET DE GARNITURI | 1 |
| 999 | R961001255 | SET DE GARNITURI | 1 |
