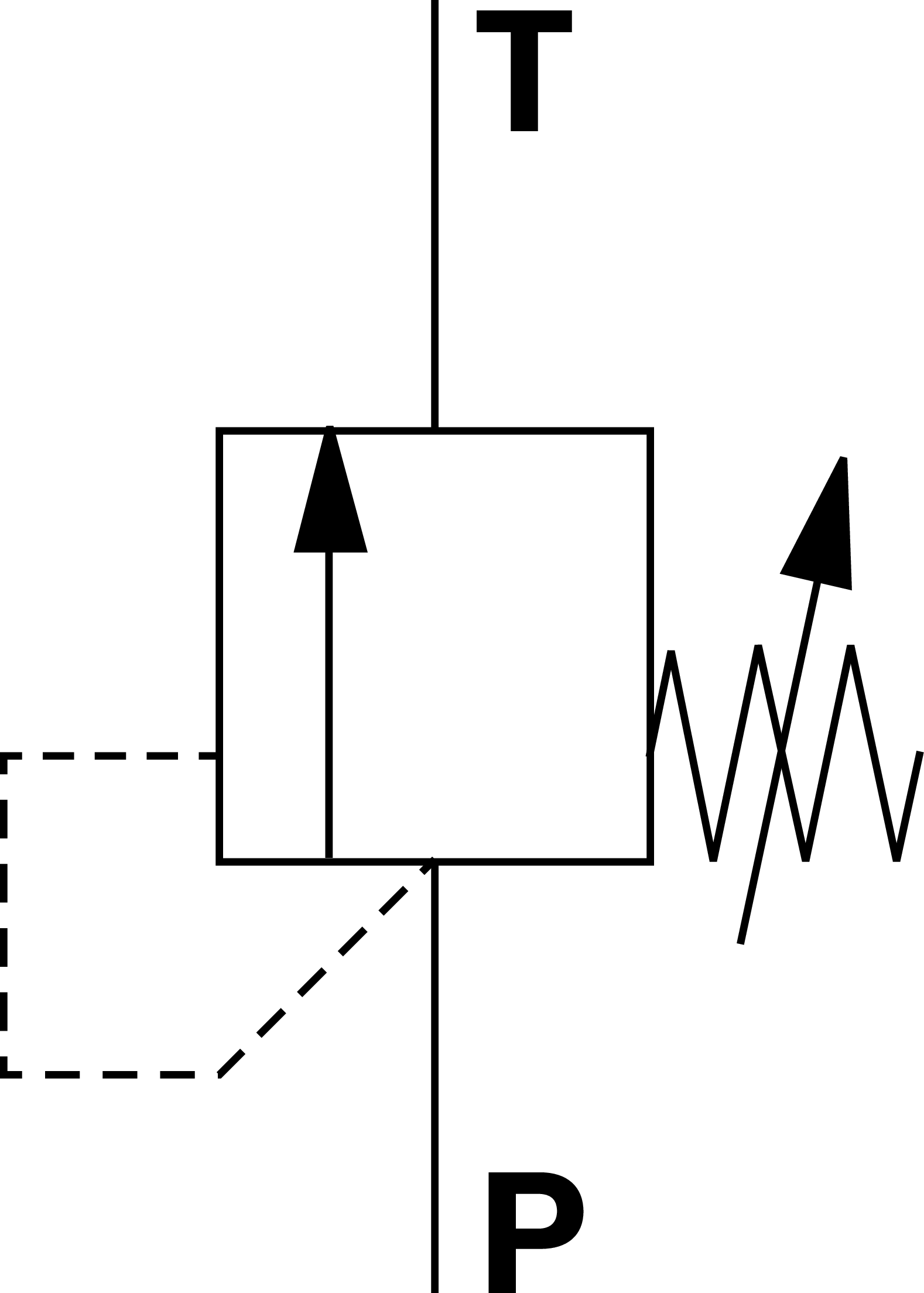

PRESSURE RELIEF VALVE
DBDS 10 K1X/100
Tip acționare with manual actuation · Presiune max. de lucru 630 bar · Debit max. 120 l/min
Specificații tehnice
| Greutate brută | 520 g |
| Greutate netă | 520 g |
| Connection diagram | Mounting cavity DBD NG10 |
| Product family classification | Pressure relief valve, direct operated |
| Product family type | DBD.K |
| Ports number | 2 |
| Presiune max. de lucru | 630 bar |
| Debit max. | 120 l/min |
| Normal position | Normally closed |
| Spool Poppet | Poppet type |
| Type of connection | Screw-in cartridge valve |
| Direct - Pilot | Direct acting |
| Cavity | M35x1,5 |
| Nominal flow | 120 l/min |
| Tip acționare | with manual actuation |
| Adjustment options | Bushing with hexagon and protective cap |
| Ports | G 1/2 |
| Sealing material | NBR |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
| Product family | Relief |
| Product type | DBD.K |
| Greutate | 0.52 kg |
Documentație tehnică
- Descarcă
- 直动式限压阀DescarcăZH | PDF
- Descarcă
- Descarcă
- Descarcă
- Descarcă
- Descarcă
- Pojistný ventil, přímo řízenýDescarcăCZ | PDF
- Descarcă
- R900424147DescarcăALL | STEP
Piese de schimb
- R961007443 – SEAL KIT (DBD.10 K1C/)
