R900223676 — Valvă Cu Scaun M-3SED6UK1X/350CG24K4
POPPET DIRECTIONAL VALVE
M-3SED6UK1X/350CG24K4
Mărime 6 · Simbol sertar Symbol UK · Presiune max. de lucru 350 bar
Specificații tehnice
| Connection diagram | ISO 4401-03-02-0-05 |
| ECLASS_13_Classification | 51-44-01-01 |
| Electric connection description | Connector, 3-pole (2 + PE) according to EN 175301-803 |
| Electrical connector | Connector, 3-pole (2 + PE) |
| Greutate brută | 1.42 kg |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD |
| Debit max. | 25 l/min |
| Greutate netă | 1.42 kg |
| Presiune max. de lucru | 350 bar |
| Product family | M-.SED6 |
| Seals | NBR |
| Mărime | 6 |
| Simbol sertar | Symbol UK |
| Supply voltage | 24 VDC |
| Type of actuation | with solenoid actuation |
| Type of connection | Subplate mounting |
| Valve ports number | 3 |
| Valve position number | 2 |
| Greutate | 1.42 kg |
Documentație tehnică
- R900223676DescarcăALL | STEP

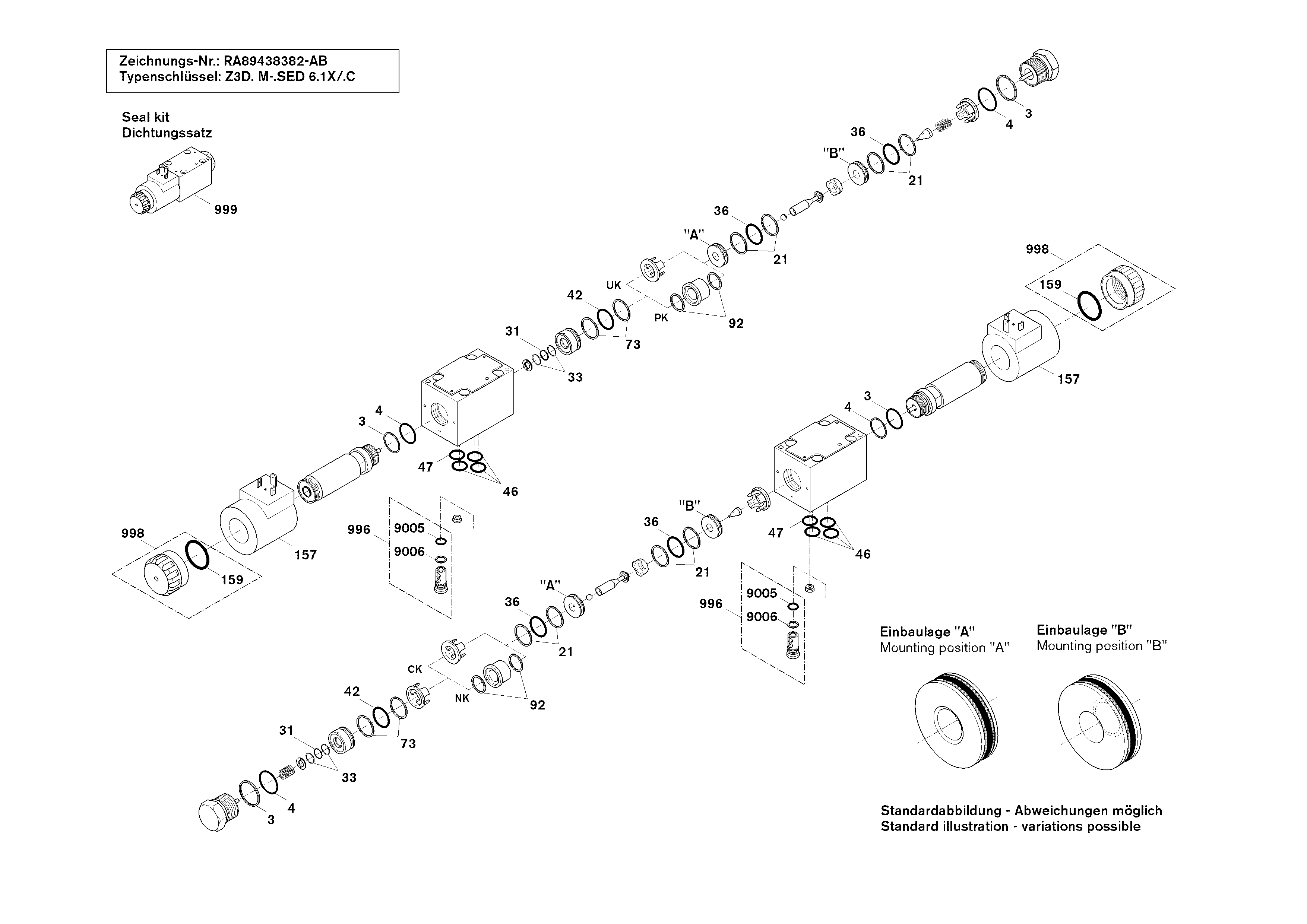

Piese de schimb — vedere explodată
| Poz. | Cod material | Denumire | Cant. |
|---|---|---|---|
| 157 | R901370939 | BOBINĂ MAGNETICĂ | 1 |
| 998 | R900838254 | PIULIŢĂ | 1 |
| 999 | R961000679 | SET DE GARNITURI | 1 |
