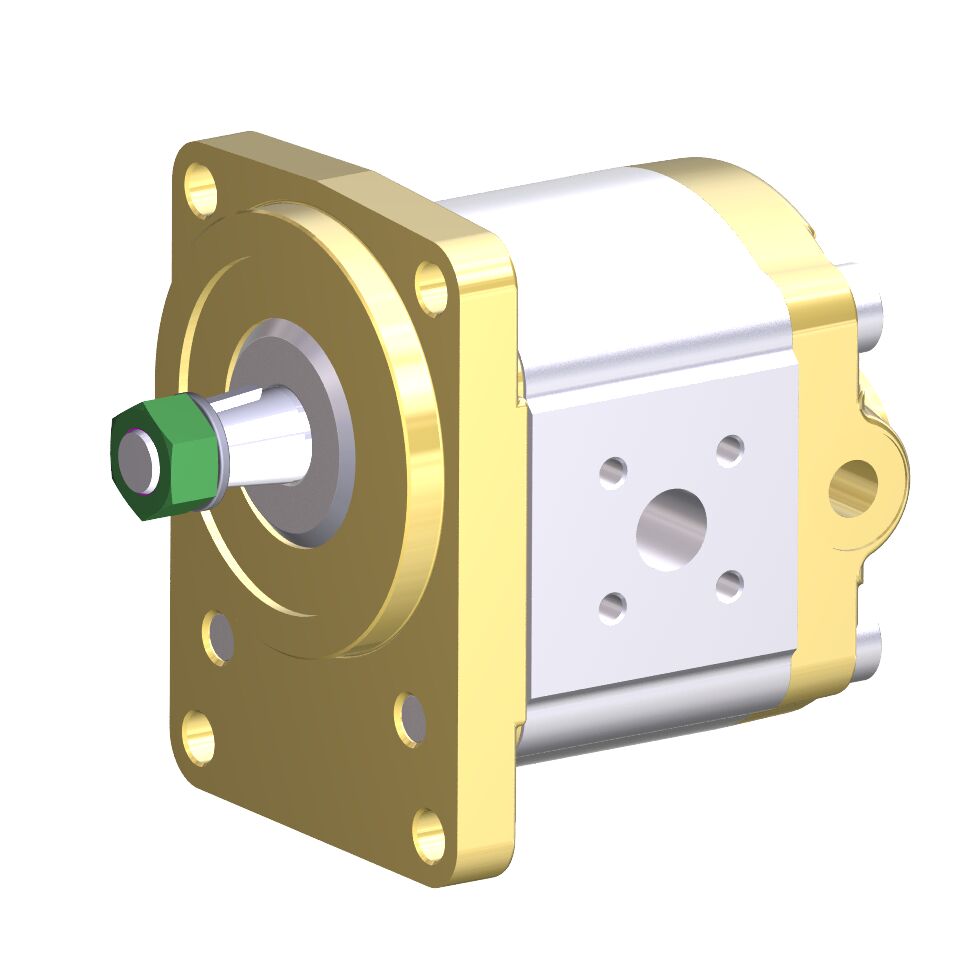

0511625620 — Motor Cu Roţi Dinţate AZMF-12-016UCB20PX-S0570
GEAR MOTOR
AZMF-12-016UCB20PX-S0570
Mărime nominală 16 cm³/rev · Serie Bearing diameter 18mm · Variantă Corrosion resistant, pinned
Specificații tehnice
| Sens de rotație | Bi-rotational |
| Drive shaft | Conical 1:5 |
| Front cover | Rectangular flange Dia. 80 mm |
| Function | Motor |
| Greutate brută | 2.9 kg |
| Housing material | Aluminum |
| Maximum constant pressure | 250 bar |
| Maximum rotational speed | 3000 rpm |
| Model | Model F (5.5 ... 22.5 cm³/rev) |
| Greutate netă | 2.9 kg |
| Noise level | Standard noise level |
| Mărime nominală | 16 cm³/rev |
| Non-standard version | Deviations from catalogue standards, see drawing |
| Port connection | Square flange to fitting ISO 8434-1 |
| Product | External Gear Unit |
| Rear cover | Non-standard version |
| Sealing material | FKM |
| Serie | Bearing diameter 18mm |
| Variantă | Corrosion resistant, pinned |
| Greutate | 2.9 kg |
Documentație tehnică
- 0511625620_180213723.stpDescarcăALL | STEP
- R901501045DescarcăALL | STEP
- RGS1010.stpDescarcăALL | STEP
- Descarcă
- StreckenstoßDescarcăDE | PDF
- External gear motor AZMFDescarcăEN | PDF

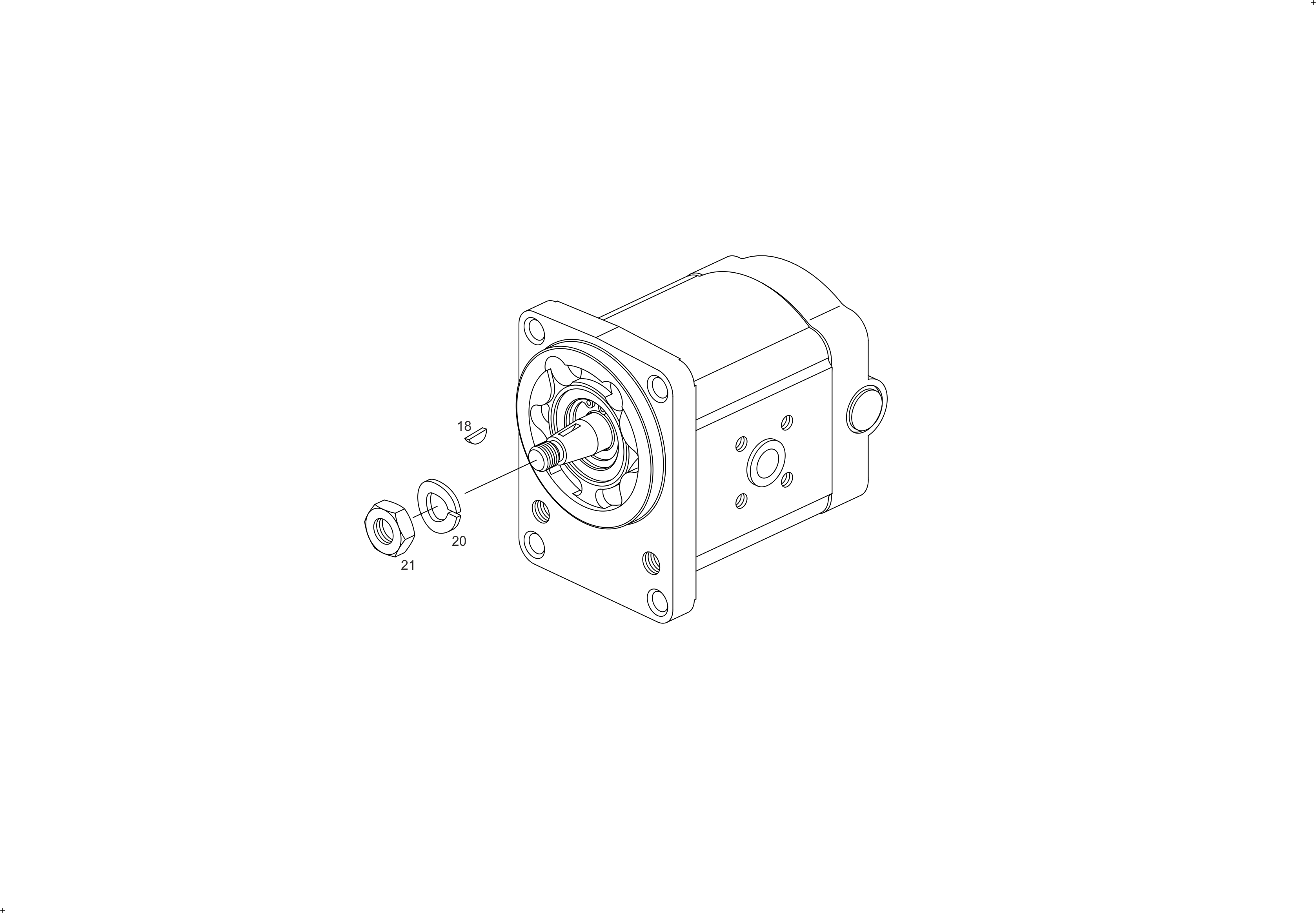

Piese de schimb — vedere explodată
| Poz. | Cod material | Denumire | Cant. |
|---|---|---|---|
| 18 | 1510023001 | ARC-DISC | 1 |
| 20 | 2916699166 | INEL CU ARC | 1 |
