0511625611 — AZMN-22-020UCB20PX-S0077
GEAR MOTOR
AZMN-22-020UCB20PX-S0077
Mărime nominală 20 cm³/rev · Serie design housing 110 mm · Variantă corrosion-resistant, pinned
Specificații tehnice
| Customer part number | R918C01720 |
| Sens de rotație | Universal |
| Drive shaft | Conical 1:5 |
| Front cover | Rectangular flange Ø 80 mm |
| Function | Motor |
| Greutate brută | 6.6 kg |
| Housing material | Aluminum |
| Maximum constant pressure | 280 bar |
| Maximum rotational speed | 3000 rpm |
| Model | Model N (20 ... 36 cm³/rev) |
| Greutate netă | 6.6 kg |
| Noise level | Standard noise level |
| Mărime nominală | 20 cm³/rev |
| Non-standard version | Deviations from catalogue standards, see drawing |
| Port connection | Rectangular flange for fitting ISO8434-1 |
| Product | External gear unit |
| Rear cover | Non-standard version |
| Sealing material | FKM |
| Serie | design housing 110 mm |
| Variantă | corrosion-resistant, pinned |
| Greutate | 6.6 kg |
Documentație tehnică
- 0511625611_202410423.stpDescarcăALL | STEP

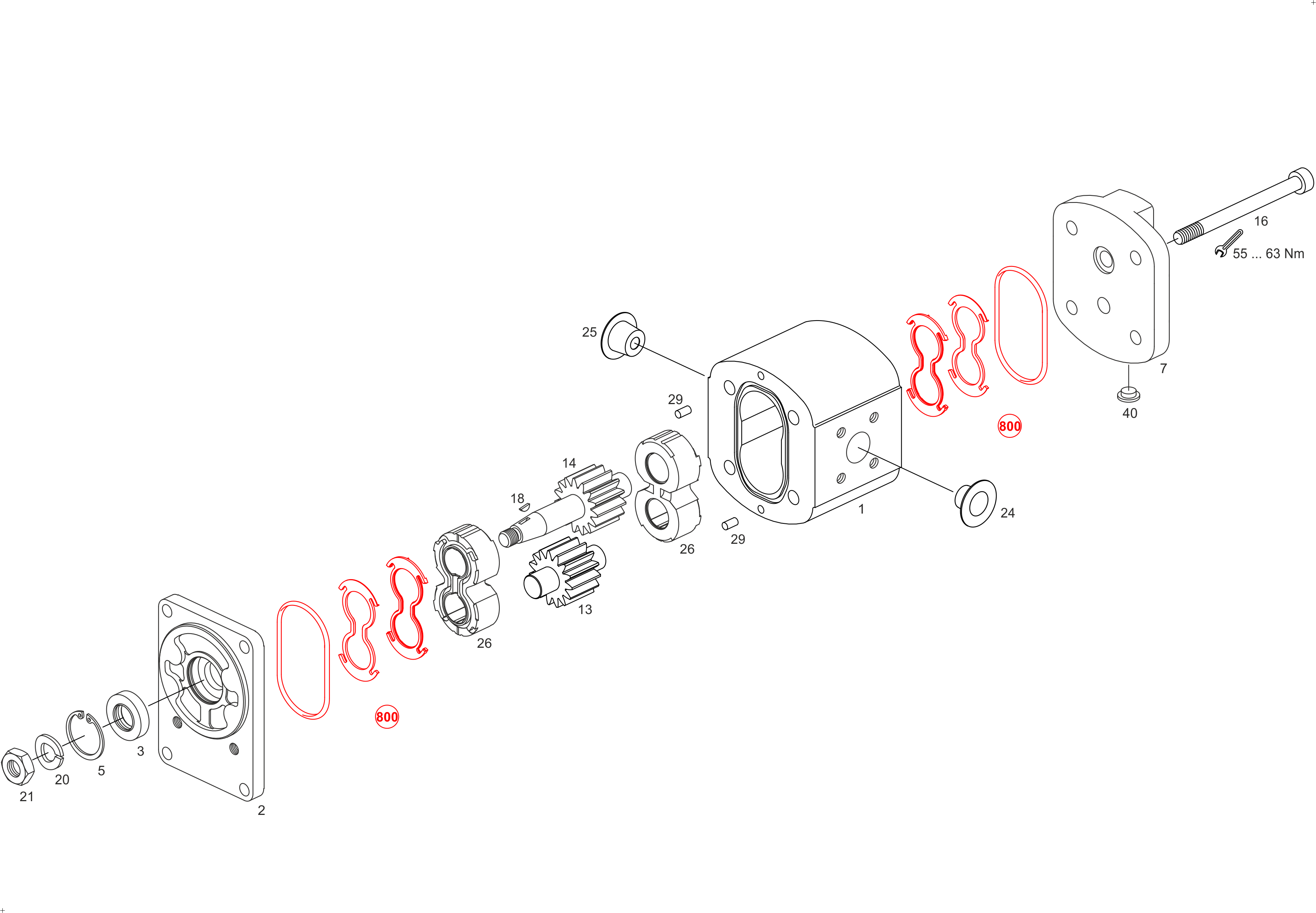

Piese de schimb — vedere explodată
| Poz. | Cod material | Denumire | Cant. |
|---|---|---|---|
| 5 | 2916660018 | INEL DE SIGURANŢĂ | 1 |
| 18 | 1510023003 | ARC-DISC | 1 |
| 20 | 2916699167 | INEL CU ARC | 1 |
| 800 | 1517010221 | SET DE GARNITURI | 1 |
