R987245500 — Distribuitor Cu Sertar H-4WEH32J6X/6EG24N9TSK4/B10D3
DIRECTIONAL SPOOL VALVE
H-4WEH32J6X/6EG24N9TSK4/B10D3
Mărime 32 · Simbol sertar Symbol J · Presiune max. de lucru 350 bar
Technical specifications
| Connection diagram | ISO 4401-10-09-0-05 |
| ECLASS_13_Classification | 51-44-01-02 |
| Electric connection description | Connector, 3-pole (2 + PE) according to EN 175301-803 |
| Electrical connector | Connector, 3-pole (2 + PE) |
| Greutate brută | 36 kg |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
| Debit max. | 1100 l/min |
| Greutate netă | 36 kg |
| Presiune max. de lucru | 350 bar |
| Product family | H-4W.H.. |
| Seals | NBR |
| Mărime | 32 |
| Simbol sertar | Symbol J |
| Supply voltage | 24 VDC |
| Type of actuation | with solenoid actuation |
| Type of connection | Subplate mounting |
| Valve ports number | 4 |
| Valve position number | 3 |
| Greutate | 36 kg |
Technical documentation

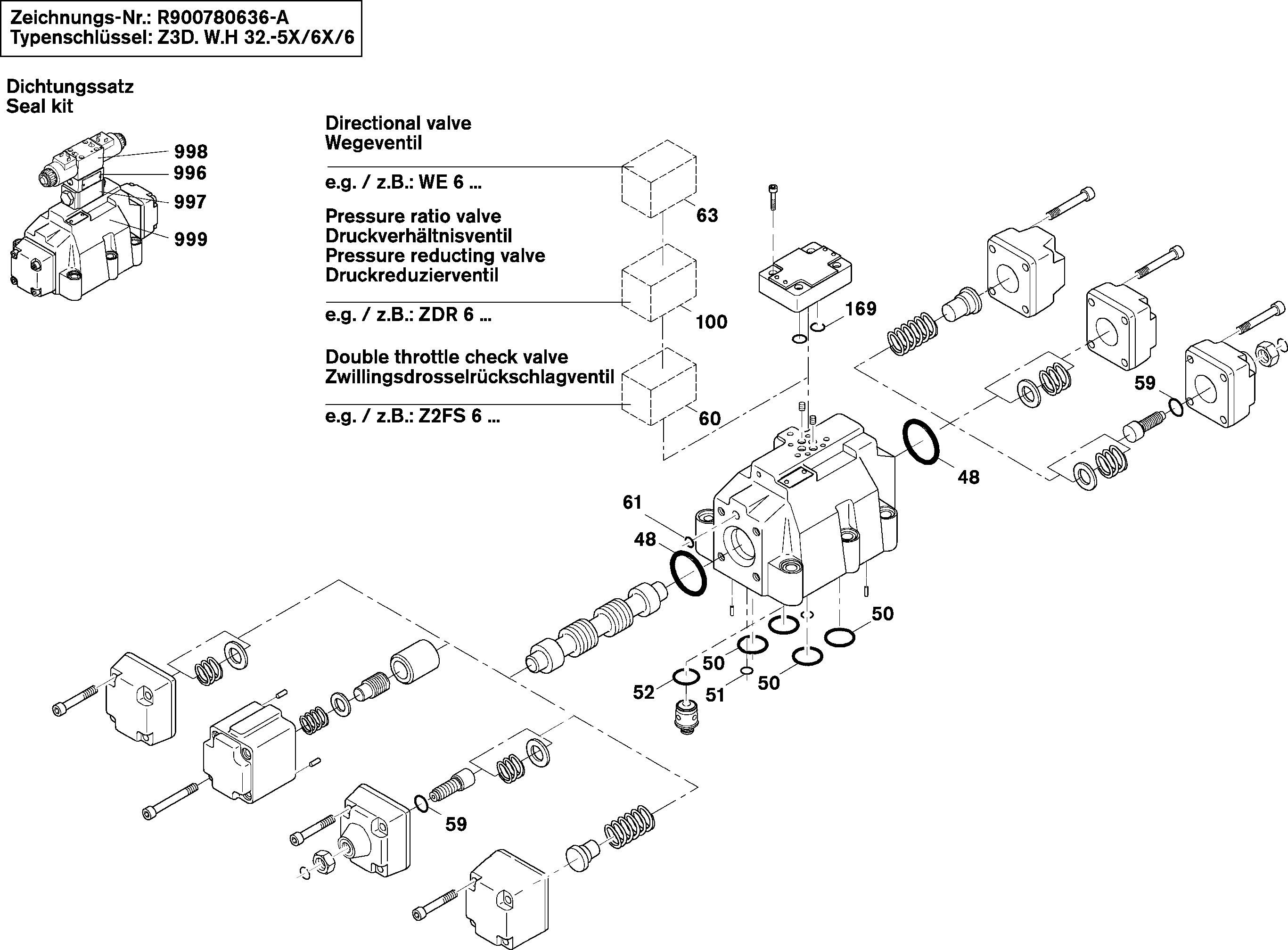

Spare parts — exploded view
| Item | Material no. | Description | Qty |
|---|---|---|---|
| 996 | R900897416 | SEAL KIT | 1 |
| 997 | R900899023 | SEAL KIT | 1 |
| 998 | R900357573 | SEAL KIT | 1 |
| 999 | R900309829 | SEAL KIT | 1 |
| 9990 | R961013776 | PRESSURE RED.VALVE INTERMEDIATE PLATE | 1 |
