R902446356 — Pompa Cu Pistoane Axiale A A10VNO 85 DRS /53R-VSC11N00 -S2185
AXIAL-PISTON PUMP
A A10VNO 85 DRS /53R-VSC11N00 -S2185
Mărime 85 · Control DRS · Serie 5
Technical specifications
| Control | DRS |
| Sens de rotație | R |
| Greutate brută | 23.283 kg |
| Greutate netă | 23.283 kg |
| Operare | O |
| Serie | 5 |
| Mărime | 85 |
| Tip | A10V |
Technical documentation
- R901501045DownloadALL | STEP
- A10VNO...DRS / 53 Variable pumpDownloadALL | STEP
- A10VNO...DRS / 53 Variable pumpDownloadALL | STEP
- Download
- StreckenstoßDownloadDE | PDF
- 6/2 ways/positions flow diverters with ports C1, C2, C3 and C4 single side – L725.... (VS161-VS165)DownloadEN | PDF
- Download
- Einbauzeichnung EDS1-L0600DownloadALL | PDF

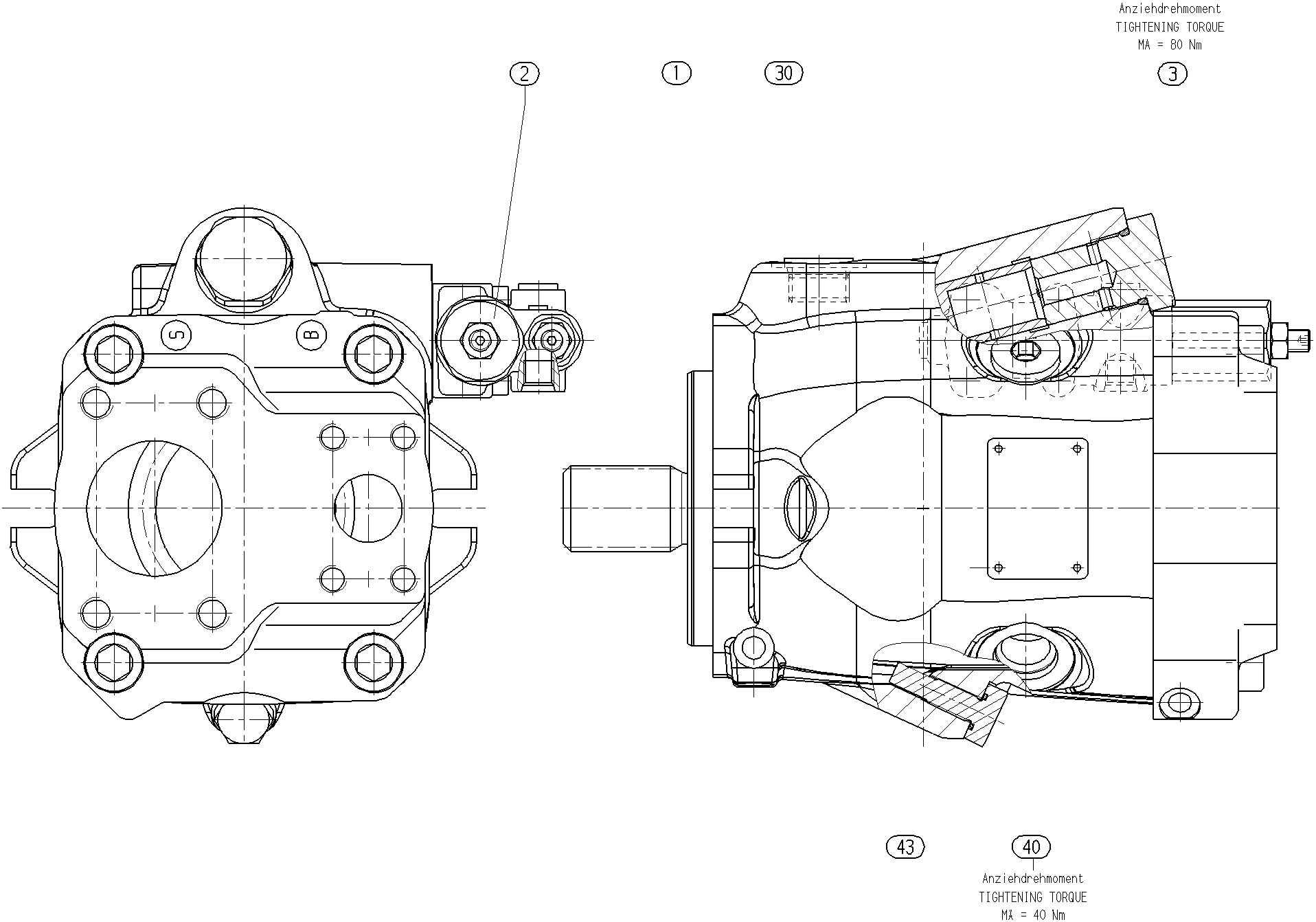

Spare parts — exploded view
| Item | Material no. | Description | Qty |
|---|---|---|---|
| 0 | R910967343 | SCREW PLUG | 3 |
| 1 | R902446359 | BASE UNIT | 1 |
| 2 | R902452299 | CONTROL VALVE | 1 |
| 3 | R902436302 | CONTROL | 1 |
| 40 | R902427032 | STOP SCREW | 1 |
| 43 | R910804886 | O-RING | 1 |
