R901583933 — Distribuitor Proporţional 2WRCF40S1K6R-4X/H420MWKE/24ND9D
PROPORTIONAL DIRECTIONAL VALVE
2WRCF40S1K6R-4X/H420MWKE/24ND9D
Mărime 40 · Simbol sertar Symbol S · Presiune max. de lucru 420 bar
Technical specifications
| Conformity | UKCA,CE |
| Connection diagram | ISO 7368-10-7-1-16 |
| Connectivity | Digital, PROFINET RT |
| ECLASS_13_Classification | 51-45-01-90 |
| Greutate brută | 14.9 kg |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC (Fuchs: Hydrotherm 46M, Renosafe 500; Petrofer: Ultra Safe 620; Houghton: Safe 620; Union: Carbide HP5046) |
| Debit max. | 4300 l/min |
| Greutate netă | 14.9 kg |
| Presiune max. de lucru | 420 bar |
| Product family | 2WRC../H |
| Seals | NBR |
| Mărime | 40 |
| Simbol sertar | Symbol S |
| Supply voltage | 24 VDC |
| Type of actuation | Electrical with integrated fieldbus electronics |
| Type of connection | Cartridge valve |
| Valve ports number | 2 |
| Valve position number | 2 |
| Greutate | 14.9 kg |
Technical documentation

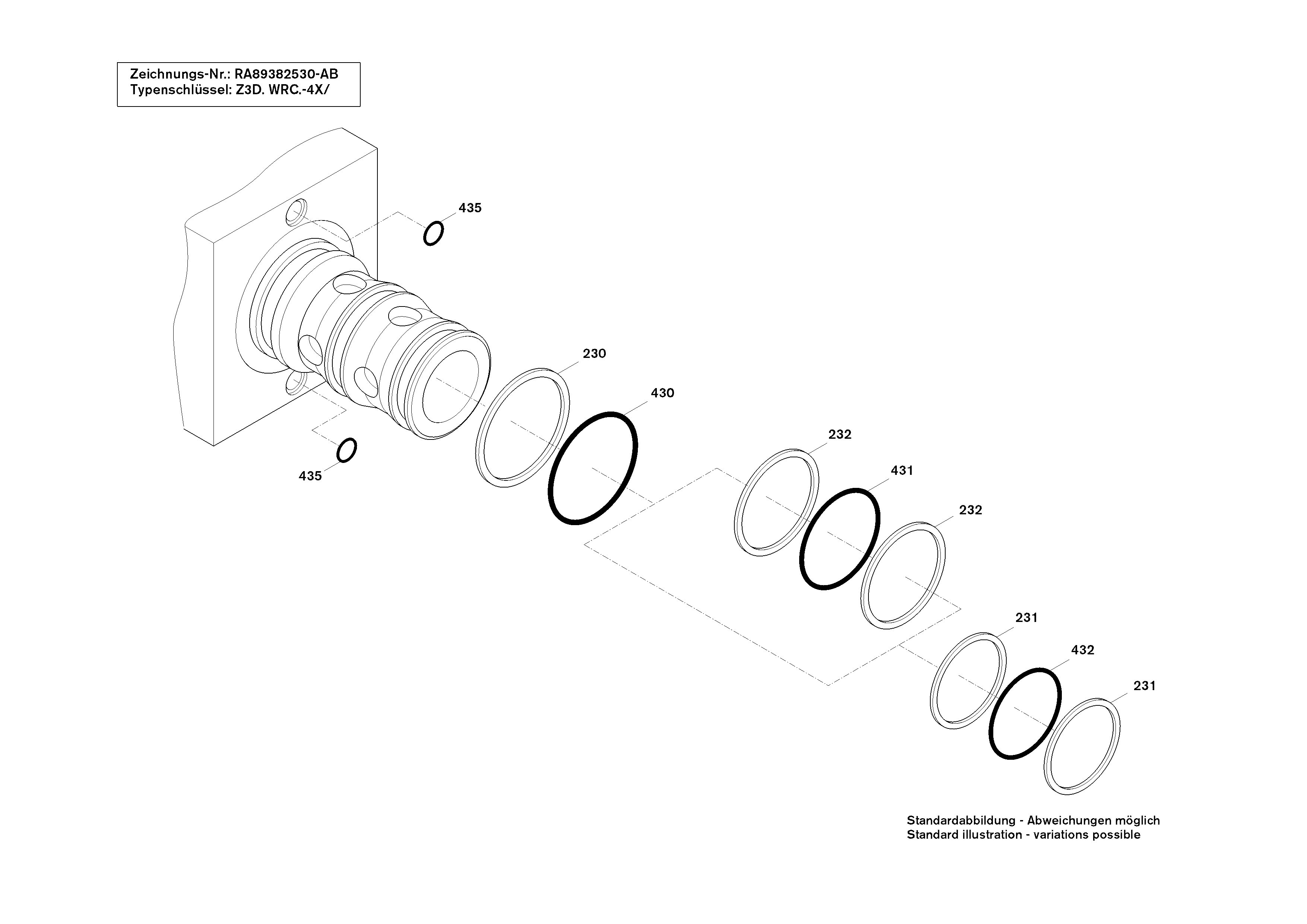

Spare parts — exploded view
| Item | Material no. | Description | Qty |
|---|---|---|---|
| 9898 | R961000837 | SEAL KIT | 1 |
| 9899 | R961012592 | SEAL KIT | 1 |
