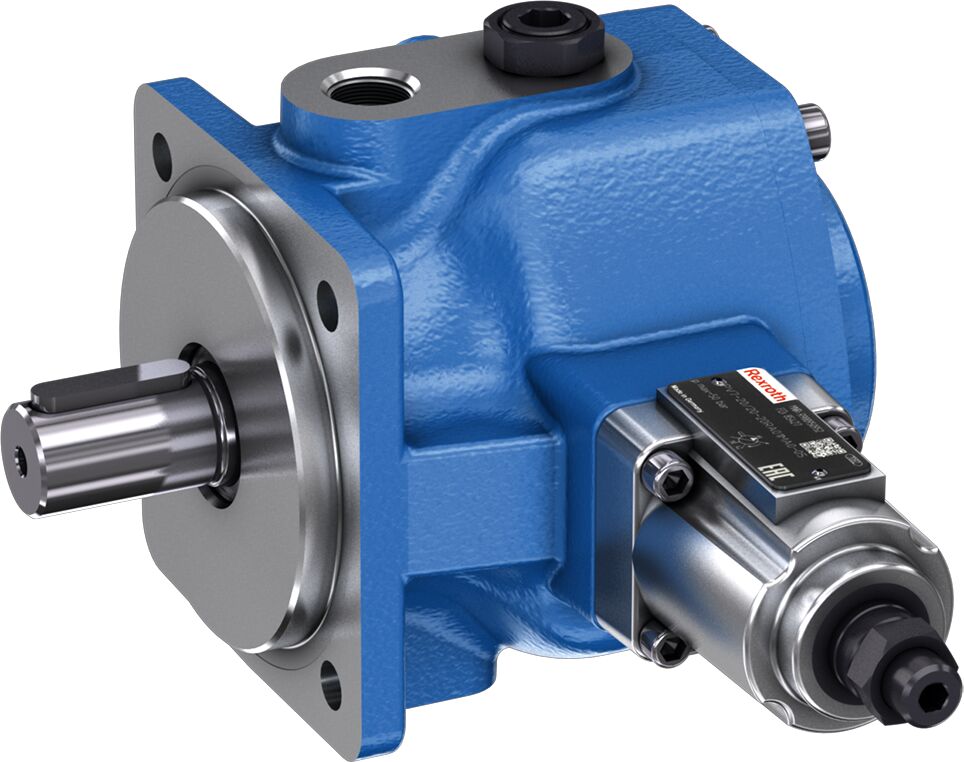

R901410775 — Pompă Cu Palete PV7-1X/06-10RA01MA0-10-P55Q12
VANE PUMP
PV7-1X/06-10RA01MA0-10-P55Q12
Mărime 10 cm³ · Presiune max. de lucru 100 bar · Debit max. 18 l/min
Technical specifications
| Sens de rotație | Clockwise rotation |
| Displacement type | variable |
| ECLASS_13_Classification | 51-41-05-02 |
| Greutate brută | 5.611 kg |
| Hydraulic fluid | HLP,HLPD,HVLP,HVLPD |
| Debit max. | 18 l/min |
| Mounting flange | 4-hole mounting flange 80B4HW according to ISO 3019-2 |
| Greutate netă | 5.611 kg |
| Presiune max. de lucru | 100 bar |
| Product family | PV7...A |
| Seals | NBR |
| Mărime | 10 cm³ |
| Through drive | without |
| Greutate | 5.62 kg |
Technical documentation
- R901410775DownloadALL | STEP
Spare parts — exploded view
| Item | Material no. | Description | Qty |
|---|---|---|---|
| 20 | R900544386 | COMPENSATOR | 1 |
| 22 | R900307859 | SERVO UNIT | 1 |
| 998 | R900891525 | REPAIR KIT | 1 |
| 999 | R900891726 | SEAL KIT | 1 |
