R901350518 — Distribuitor Cu Sertar 5-4WE10D5X/EG24K4/M
DIRECTIONAL SPOOL VALVE
5-4WE10D5X/EG24K4/M
Mărime 10 · Simbol sertar Symbol D · Presiune max. de lucru 350 bar
Technical specifications
| Connection diagram | ISO 4401-05-04-0-05 |
| ECLASS_13_Classification | 51-44-01-02 |
| Electric connection description | Connector, 3-pole (2 + PE) according to EN 175301-803 |
| Electrical connector | Connector, 3-pole (2 + PE) |
| Greutate brută | 4.1 kg |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HETG,HFC |
| Debit max. | 150 l/min |
| Greutate netă | 4.1 kg |
| Presiune max. de lucru | 350 bar |
| Product family | 5-.WE10../E |
| Seals | NBR |
| Mărime | 10 |
| Simbol sertar | Symbol D |
| Supply voltage | 24 VDC |
| Type of actuation | with solenoid actuation |
| Type of connection | Subplate mounting |
| Valve ports number | 4 |
| Valve position number | 2 |
| Greutate | 4.1 kg |
Technical documentation

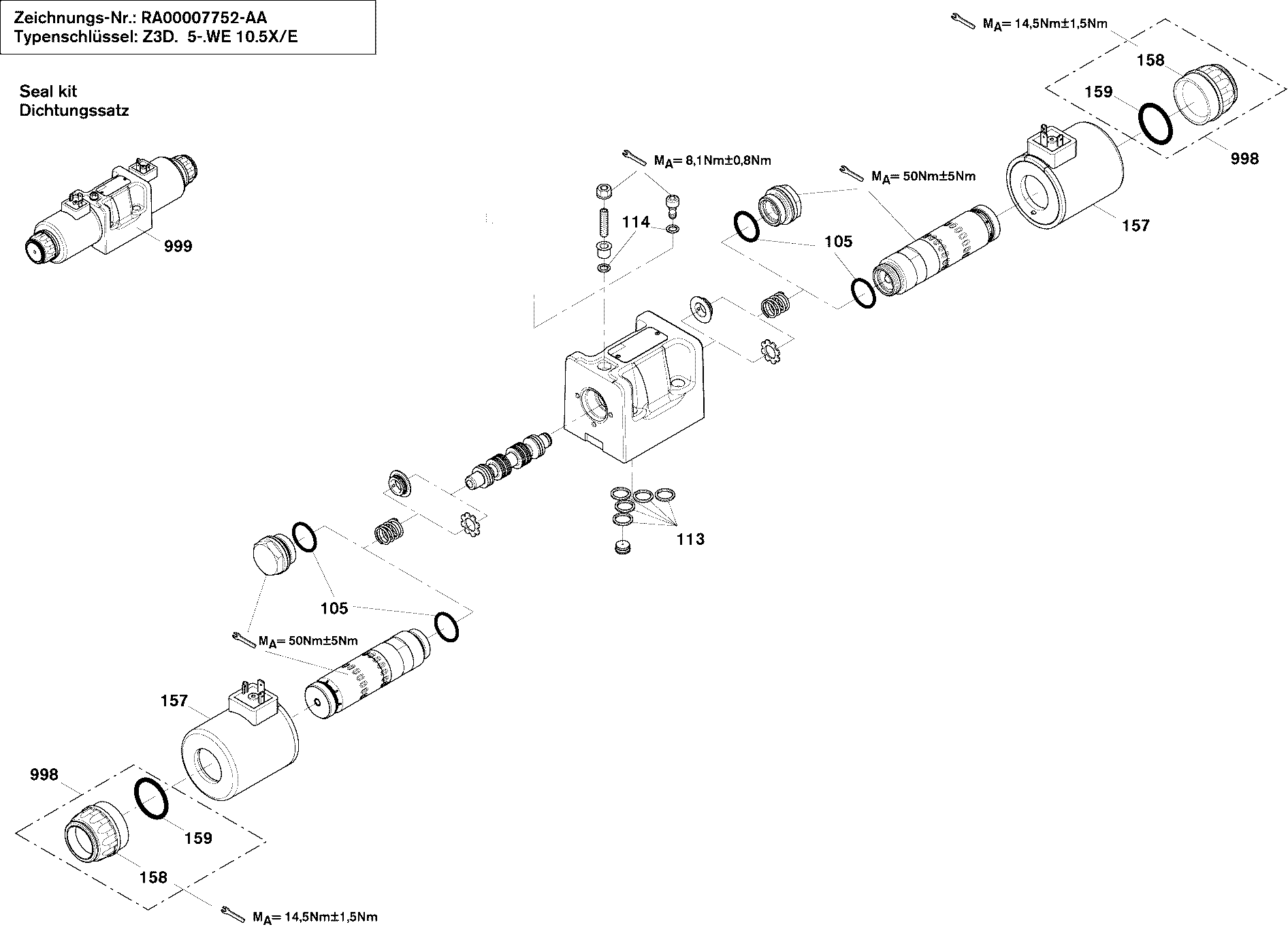

Spare parts — exploded view
| Item | Material no. | Description | Qty |
|---|---|---|---|
| 157 | R901258093 | SOLENOID COIL | 1 |
| 998 | R961008869 | NUT | 1 |
| 999 | R961007867 | SEAL KIT | 1 |
| 9990 | R961015694 | LOCKING SET | 1 |
| 9991 | R961015701 | ACTUATOR TUBE | 1 |
