R901330707 — Supapă De Limitare A Pres. DB 20 K3-1X/250XY
PRESSURE RELIEF VALVE
DB 20 K3-1X/250XY
Presiune max. de lucru 350 bar · Debit max. 400 l/min
Technical specifications
| Adjustment options | Lockable rotary knob with scale |
| Cavity | M28x1,5 |
| Coil integrated | Integrated coil |
| Direct - Pilot | Pilot operated |
| Electrical connector | DIN 43650 – EN 175301-803 |
| Greutate brută | 420 g |
| Hydraulic fluid | HL,HLP,HLPD,HVLP,HVLPD,HFC |
| Debit max. | 400 l/min |
| Greutate netă | 420 g |
| Nominal flow | 400 l/min |
| Presiune max. de lucru | 350 bar |
| Pilot oil supply and return | External pilot oil supply and pilot oil return |
| Ports number | 3 |
| Product family | Relief |
| Product family classification | Pressure relief valve, pilot operated |
| Product family type | DB.K |
| Product type | DB.K |
| Sealing material | NBR |
| Spool Poppet | Poppet type |
| Type of actuation | with manual actuation |
| Type of connection | Screw-in cartridge valve |
| Greutate | 0.42 kg |
Technical documentation

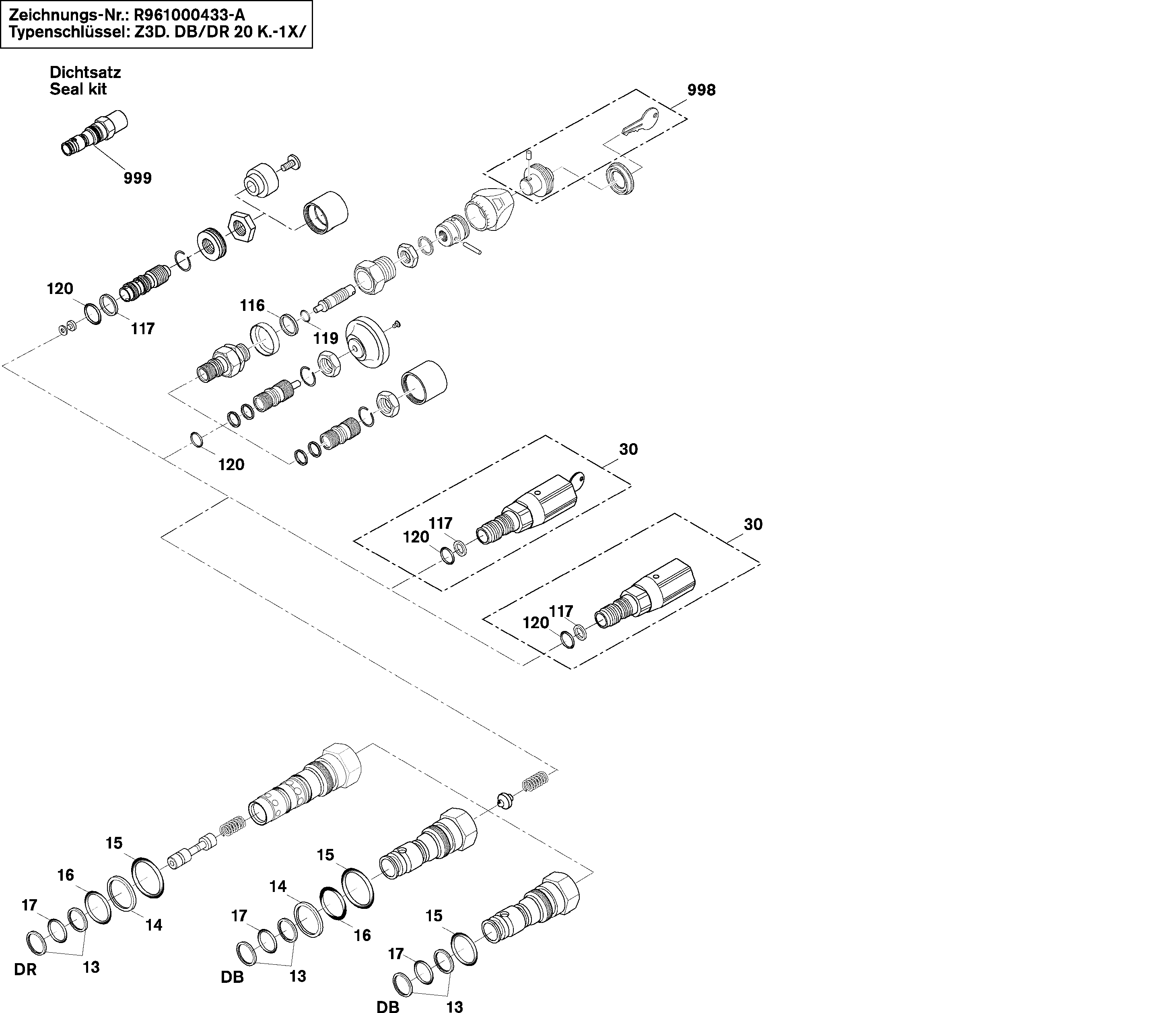

Spare parts — exploded view
| Item | Material no. | Description | Qty |
|---|---|---|---|
| 6 | R900325210 | CONTROL | 1 |
| 999 | R900722821 | SEAL KIT | 1 |
