R901156922 — Pompă Cu Palete PVV1-1X/046RA15RVB
VANE PUMP
PVV1-1X/046RA15RVB
Mărime 46 cm³ · Presiune max. de lucru 140 bar · Debit max. 70 l/min
Technical specifications
| Sens de rotație | Clockwise rotation |
| Displacement type | fixed |
| ECLASS_13_Classification | 51-41-05-03 |
| Greutate brută | 12.3 kg |
| Hydraulic fluid | HLP,HFD |
| Debit max. | 70 l/min |
| Mounting flange | 2-hole mounting flange 101-2 according to ISO 3019-1 |
| Greutate netă | 12.3 kg |
| Presiune max. de lucru | 140 bar |
| Product family | PVV |
| Seals | FKM |
| Shaft end | Cylindrical Ø 22.2 mm with fitting key |
| Mărime | 46 cm³ |
| Through drive | without |
| Greutate | 12.3 kg |
Technical documentation
- R901156922DownloadALL | STEP

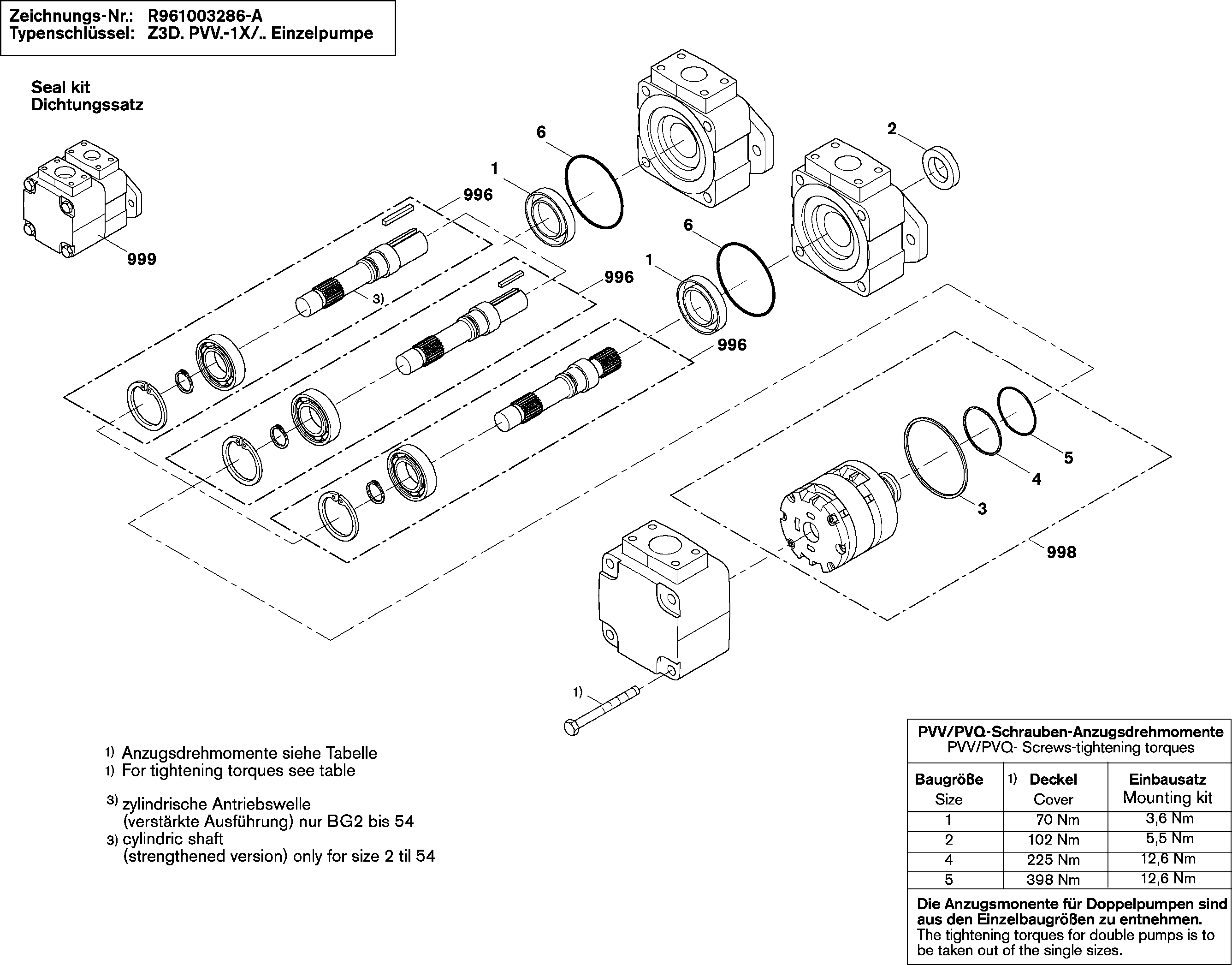

Spare parts — exploded view
| Item | Material no. | Description | Qty |
|---|---|---|---|
| 996 | R961002430 | SHAFT | 1 |
| 998 | R900212619 | MOUNTING KIT | 1 |
| 999 | R900221925 | SEAL KIT | 1 |
