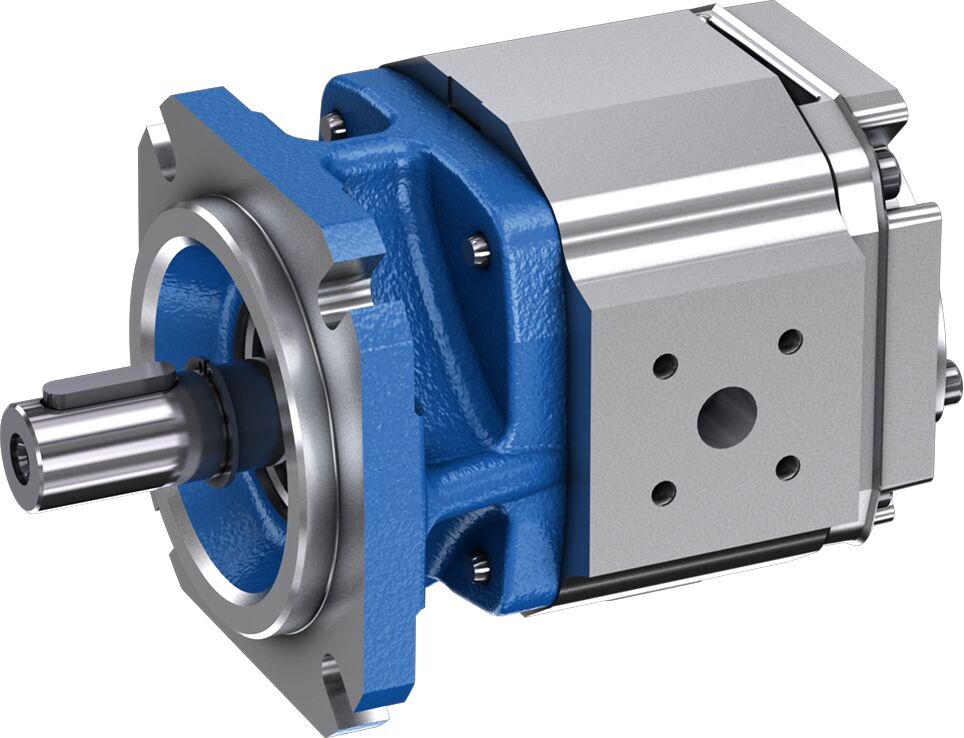

R900984042 — Pompă Cu Roţi Dinţate PGP3-3X/020RJ20VU2K
INTERNAL GEAR PUMP
PGP3-3X/020RJ20VU2K
Mărime 20 · Presiune max. de lucru 250 bar · Debit max. 29.9 l/min
Technical specifications
| Sens de rotație | Clockwise rotation |
| Displacement type | fixed |
| ECLASS_13_Classification | 51-41-04-02 |
| Greutate brută | 4.77 kg |
| Hydraulic fluid | HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR |
| Debit max. | 29.9 l/min |
| Mounting flange | 2-hole mounting flange 101-2 according to ISO 3019-1 |
| Greutate netă | 4.77 kg |
| Operating pressure max. special fluids | 250 bar |
| Presiune max. de lucru | 250 bar |
| Product family | PGP |
| Seals | FKM |
| Shaft end | Geared 22-4, 13T 16/32 DP, ISO 3019-1 |
| Mărime | 20 |
| Through drive | with |
| Greutate | 4.77 kg |
Technical documentation
- R900984042DownloadALL | STEP
- InnenzahnradpumpeDownloadDE | PDF
- Internal gear pumpDownloadEN | PDF
Spare parts — exploded view
| Item | Material no. | Description | Qty |
|---|---|---|---|
| 185 | R900983621 | CARRIER | 1 |
| 998 | R900888628 | REPAIR KIT | 1 |
| 999 | R900888604 | SEAL KIT | 1 |
