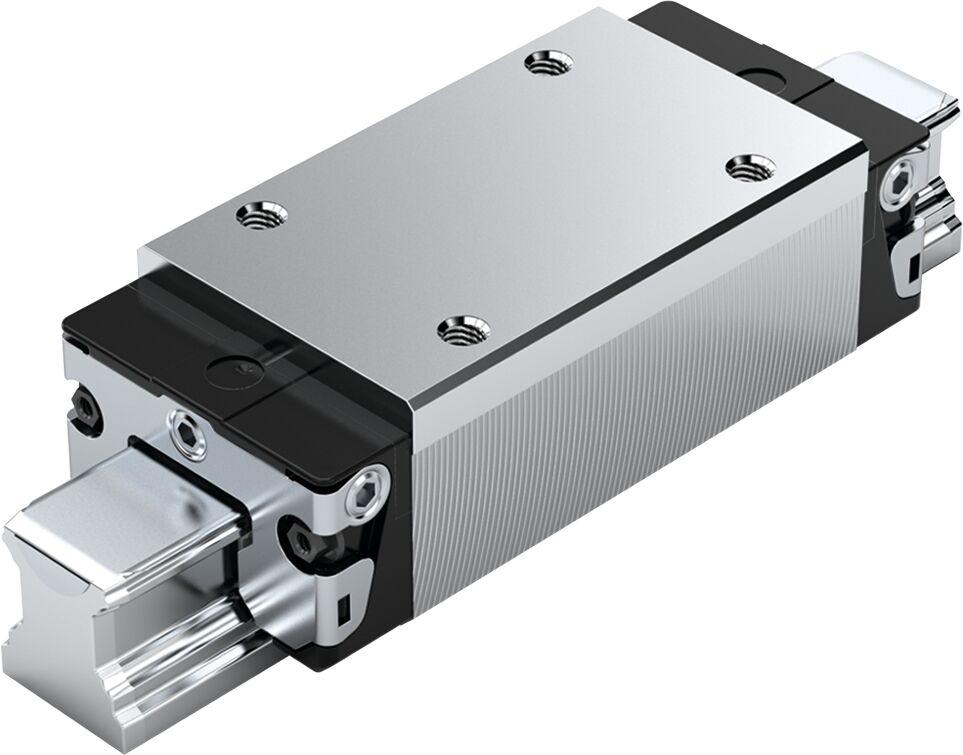

R16243137Y — Cărucior Cu Bile Resist Cr KWD-035-SLH-C1-H-1
BALL RUNNER BLOCK RESIST CR
KWD-035-SLH-C1-H-1
Mărime nominală 35 · Format SLH - slimline, long, high · Variantă Ball rail system
Technical specifications
| Clasă de precizie | H - Highly accurate |
| Ball chain | With ball chain |
| Dimension A (profiled rail systems) | 70 mm |
| Dimension A1 (profiled rail systems) | 35 mm |
| Dimension A2 (profiled rail systems) | 34 mm |
| Dimension A3 (profiled rail systems) | 18 mm |
| Dimension B (profiled rail systems) | 139 mm |
| Dimension B tolerance (profiled rail systems) | + 0.5 |
| Dimension B1 | 105.5 mm |
| Dimension E1 | 50 mm |
| Dimension E2 (profiled rail systems) | 72 mm |
| Dimension E8 (profiled rail systems) | 58 mm |
| Dimension E9 (profiled rail systems) | 24.35 mm |
| Dimension H | 55 mm |
| Dimension H1 (profiled rail systems) | 47.4 |
| Dimension H2 with cover strip (profiled rail systems) | 32.15 mm |
| Dimension H2 without cover strip (profiled rail systems) | 31.85 mm |
| Dimension K1 (profiled rail systems) | 23.75 mm |
| Dimension K2 (profiled rail systems) | 25.25 mm |
| Dimension K3 (profiled rail systems) | 13.9 mm |
| Dimension K4 (profiled rail systems) | 13.9 mm |
| Dimension N3 (profiled rail systems) | 13 mm |
| Dimension N6 (profiled rail systems) | 20.5 mm |
| Dimension N6 tolerance (profiled rail systems) | ± 0.5 |
| Dimension S2 (profiled rail systems) | M8 |
| Dimension S5 (profiled rail system) | 9 mm |
| Dimension S9 | M3x5 mm |
| Dimension S9 lead | 5 mm |
| Dimension S9 thread diameter (profiled rail systems) | M3 |
| Dimension T1 min | 16 mm |
| Dimension V1 | 8 mm |
| Dynamic load capacity C100 | 63600 N |
| Dynamic load capacity C50 | 80100 N |
| Dynamic longitudinal moment load capacity ML100 | 1230 Nm |
| Dynamic longitudinal moment load capacity ML50 | 1550 Nm |
| Dynamic torsional moment load capacity Mt100 | 1370 Nm |
| Dynamic torsional moment load capacity Mt50 | 1730 Nm |
| Format | SLH - slimline, long, high |
| Friction coefficient μ | 0.002 ... 0.003 |
| Greutate brută | 2.1 kg |
| Height of runner block | 47.4 mm |
| Height runner block with guide rail | 55 mm |
| Length of runner block | 139 mm |
| Lubrication | Pre-lubricated, preserved |
| Material (profiled rail systems) | Hard chrome plated |
| Maximum acceleration rate amax | 500 m/s² |
| Maximum permissible linear speed vmax | 5 m/s |
| Model | High-precision ball runner block |
| Greutate netă | 2.1 kg |
| Mărime nominală | 35 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a 100,000 m travel according to DIN ISO 14728-1. |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a 50,000 m travel according to DIN ISO 14728-1. |
| Note: friction coefficient μ | Without friction of seal |
| Note: Max. acceleration amax | If F<sub>comb</sub>◡<gt/> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup> |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Note: seal | No preferred variants/combinations (partially longer delivery times) |
| Permissible ambient temperature (min. ... max.) | 0 °C ... +80 °C |
| Pitch T guide rail | 80 mm |
| Preload class | C1 - Low preload |
| Seal | DS - Double-lip seal |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Static load capacity C0 | 108000 N |
| Static longitudinal moment load capacity ML0 | 2090 Nm |
| Static torsional moment load capacity Mt0 | 2320 Nm |
| Variantă | Ball rail system |
| Greutate | 2.1 kg |
| Width of runner block | 70 mm |
